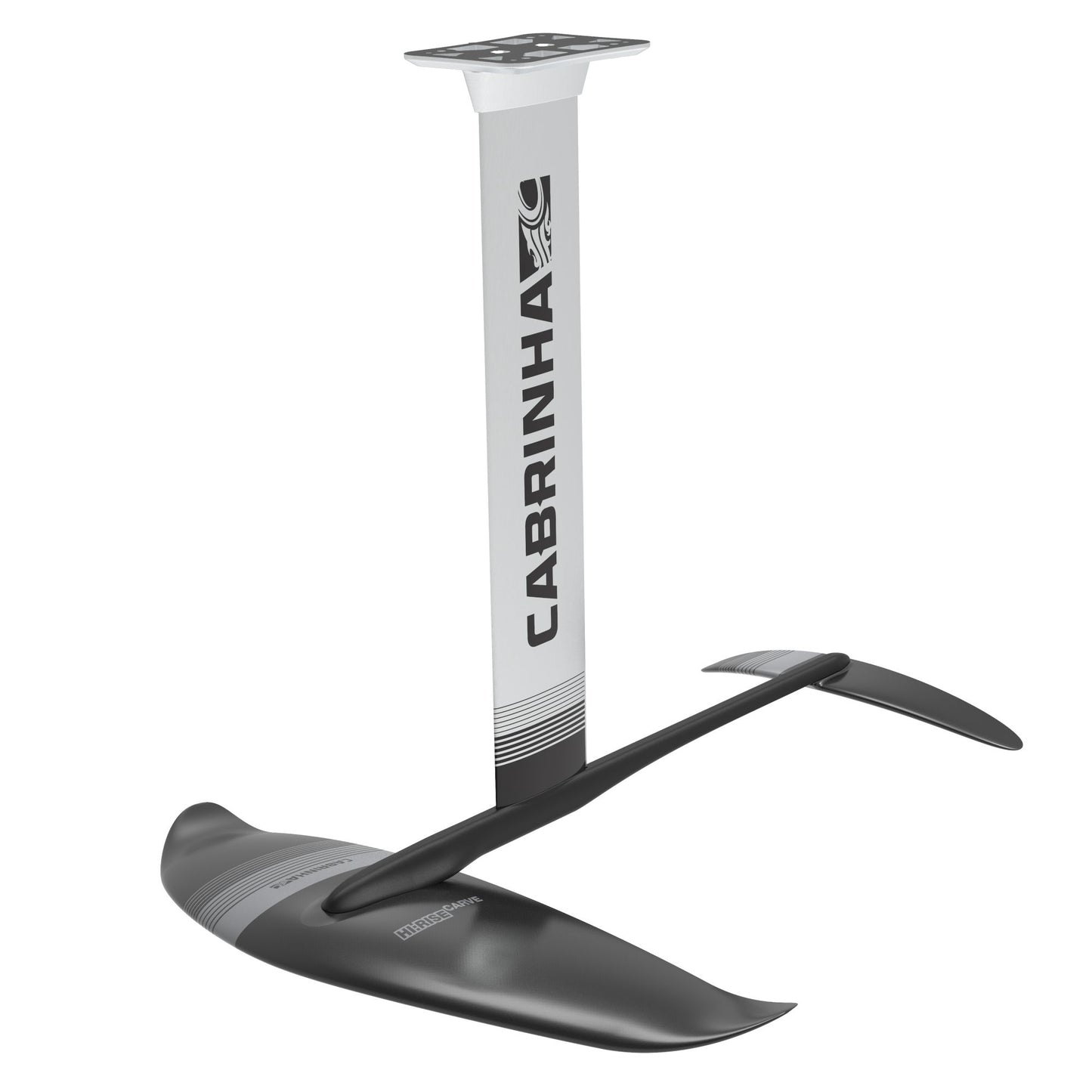

2020 Cabrinha HI:RISE CARVE All-Around Freeride / Surf Foil - 1650cm²

The 2020 Cabrinna HI:RISE CARVE foil is designed for anyone looking for a diverse wing set, which will take a first time foil rider to next level freeride and wave surfing.

The Carve foil wing is a modern high lifting wing set that is highly manoeuverable bringing you an entirely new level of performance and fun. With its signature winglets, the HI:RISE CARVE is a stable and easy foil to fly. The lower aspect ratio outline combined with the foil cross section requires very little input from your Foil to get flying. Once up, the sky is the limit. The added lift comes into play whether you are carving turns in the pocket or pumping through lulls.

The winglets provide an added level of stability to the wing and reduces induced drag, increasing aerodynamic efficiency, especially when riding through turbulent waters. The rear wing can be adjusted forward or aft to increase the ability to "carve" or facilitate a more 'locked-in' ride. These light weight wings are constructed with a Pauwlonia wood core and durable Basalt fibers. The wingset mounts to our all new 75cm (29.5 inch) wide nosed fuselage. The wider nose of the fuselage facilitates a significantly more stable connection to the wing.

Product Code: K0FOHRCVA

HI:RISE CARVE Foil Capability:

Lift Factor
Speed Factor
Maneuverability
Directional Stability
Drive

All-around freeride kitesurf foil designed for any rider looking for a diverse foil kit.

2020 HI:RISE CARVE Foil Design Profile:

  • Low aspect ratio
  • Low planing profile section
  • Moderately swept outline
  • Compound anhedral

2020 HI:RISE CARVE Component Features:

  • NEW 750mm extended Widenose Fuselage with improved stability and hydrodynamics
  • NEW adjustable rear wing positioning for increased ability to "carve" or facilitate a more 'locked-in' ride
  • Aircraft-grade extruded, anodized 6061-T6 aluminium components
  • Hollow core Mast extrusion for improved floatation and minimal weight
  • Lightweight top socket with indicator for use on industry standard track mounting system or 4 point connection

2020 HI:RISE CARVE Wing Features:

  • NEW A-Grade Paulownia wood core with unmatched strength / weight ratio
  • NEW front wing - volcanic triple layer Basalt fiber construction
  • NEW rear wing - forged composite construction
  • NEW ABS insert reinforcements

2020 HI:RISE CARVE Foil Tech Specifications:

  • Chord: 226mm
  • Projected area: 116,508.2 mm²
  • Wingspan: 685.4mm
  • AR: 4.0
  • Volume: 2,024,170 mm³

2020 HI:RISE CARVE Action Video:

2020 HI:RISE CARVE Options & Sizes:

Available sizes: 65cm or 85 cm mast

Please note the updated screw sizings for the Carve front wing:

Front hole: 38mm / Middle hole: 38mm / Rear hole: 27mm

The kit includes:

Top socket, mast, fuselage, grease, wing protectors, foam insert, 5mm allen key (5mm). Component screws: m8x25mm (4pcs), m8x40mm (4pcs), Front wing screws: m8x45mm, m8x40mm, m8x27mm, rear wing screws: m8x20mm (2pcs).
