Cabrinha

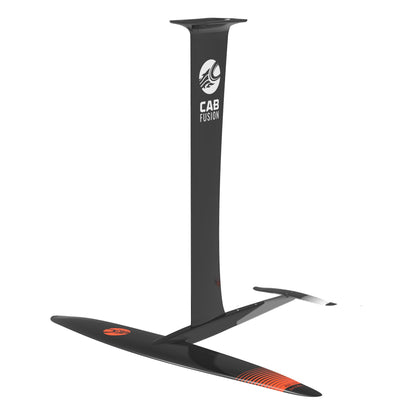

Cabrinha Fusion Carbon Foil

Cabrinha Fusion Carbon Foil

Regular price $549.45 USD
Regular price $1,039.00 USD Sale price $549.45 USD
Sale Sold out
Shipping calculated at checkout.
Size
Front Wing
Rear Stabilizer

The set includes:

  • 80 cm Carbon Mast
  • Front wing (A choice of X-Series and H-series),
  • Rear Stabilizer
  • Hardware

Because these are last stock items, specific options are subject to availability.

Cabrinha foil boards come with four screws for foil attachment. You will need a set of matching screws if you are buying this foil for a board that doesn't have screws.

1. Carbon Mast

The Fusion Carbon mast puts performance above all else. The Prepreg Carbon construction gives insane stiffness in a lightweight package. It seamlessly integrates into all 9cm industry standard foil boxes.

It boasts ultimate stiffness to weight ratio and minimum drag.

  • Integrated baseplate for superior stiffness and reduced weight
  • I-beam full carbon pre-preg construction.
  • PMI core for supperior strength to weight ratio
  • Precision tapered fuse-to-mast connection for optimal rigidity
  • Tapered chord for reduced drag

2. Choice of Front Wings:

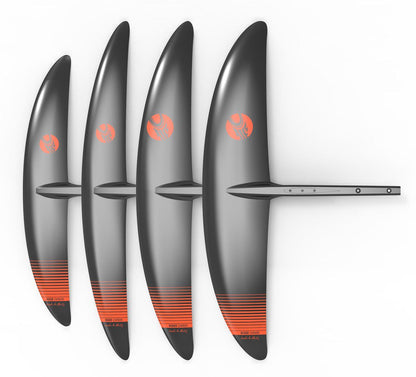

H-series

The H-series wings represent the pinnacle in hydrodynamic efficiency & performance while seamlessly integrates into the Cab Fusion Foil system.

The high aspect shape allows for effortless pumping, insane glide while retaining an ‘easy-to-steer’ feeling.

Whether you use them for wing, kite or foil-surfing, rise to the occasion with all of the H-series’ cutting edge features and be prepared for the endless ride… The H-SERIES High Aspect foil range is the latest offering from Cabrinha’s state of the art foil design program in collaboration with Keahi De Aboitiz.

Features:

  • Loose and agile feel for superior maneuverability
  • Ultra lean profile for wide speed range
  • Integrated fuselage with tapered fit
  • Incredible torsional stiffness
  • Full prepreg carbon construction
  • PMI (polymethacrylimide) core for superior strength to weight ratio
  • Moderate anhedral for a more efficient lift platform

Specifications:

H650: 650cm², WS 720, AR 7.9, Chord 125mm
H800: 800cm², WS 900, AR 9.9, Chord 125mm
H1000: 1000cm², WS 900, AR 8.1, Chord 155mm
H1200- 1200cm², WS 900, AR 6.7, Chord 185mm

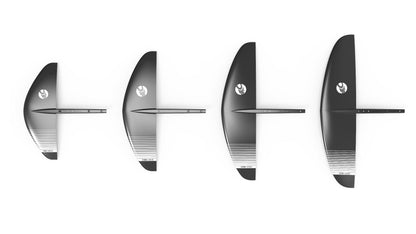

X-Series Front Wing

Front Wing Features

  • Loose and agile feel for superior maneuverability
  • Optimal efficiency and lift
  • Integrated fuselage with tapered fit
  • Incredible torsional stiffness and minimum drag
  • Full prepreg carbon construction
  • EPS core for superior strength to weight ratio
  • Moderate anhedral for a more efficient lift platform
  • Draft forward profile for a forgiving ride and early predictable lift

Tech Specs

Wing Size Surface Area Wing Span Aspect Ratio Volume
X950 950 cm2 630mm 4.2 1.18L
X1300 1300 cm2 780mm 4.7 1.6L
X1600 1600 cm2 900mm 5.05 2L
X1950 1950 cm2 1000mm 5.13 2.5L

3. Fuselage Features

  • Precision CNC machined aircraft grade, anodized 6061-T6 aluminum
  • Helicoil inserts minimizes corrosion and provides long lasting durability
  • Interchangeable rear fuselage for optimal performance and easy travel
  • Sold with 343mm fuselage for superior maneuverability
  • Sold as accessory: 416mm fuselage for a perfect balance of stability and ease of use
  • Recessed stabilizer mounting surface for minimal drag

4. Rear Stabilizer

XS-Rear Stabilizer Features

  • Optimal efficiency and lift
  • Flat center, to downward tips, for perfect balance between locked-in feel and agility
  • Recessed design for minimal drag
  • Full prepreg carbon construction
  • EPS core for superior strength to weight ratio

V-Rear Stabilizer Features

  • Optimal efficiency and lift
  • Flat center, to downward tips, for perfect balance between locked-in feel and agility
  • Recessed design for minimal drag
  • Full prepreg carbon construction
  • EPS core for superior strength to weight ratio

XS-Series Rear Stab Tech Specs


Wing Size Surface Area Wing Span Aspect Ratio
XS220 220 cm2 370mm 6.4
X300 300 cm2 430mm 6.4



V-Series Rear Stab Tech Specs

  • 180 cm², WS-340, AR-6.42
  • 200 cm² / WS-360 / AR-6.48 NEW for 04S collection
  • 230    cm², WS-400, AR-6.96
  • 285 cm², WS-450, AR-7.11

01 Cabrinha Fusion Foil Videos:

Cabrinha Fusion X-Series Hydrofoil System

Cabrinha Fusion Foil Assembly Walkthrough
