Wingfoil Package: Mantis V4, 04 Code, X1650/84cm Foil - Progression V

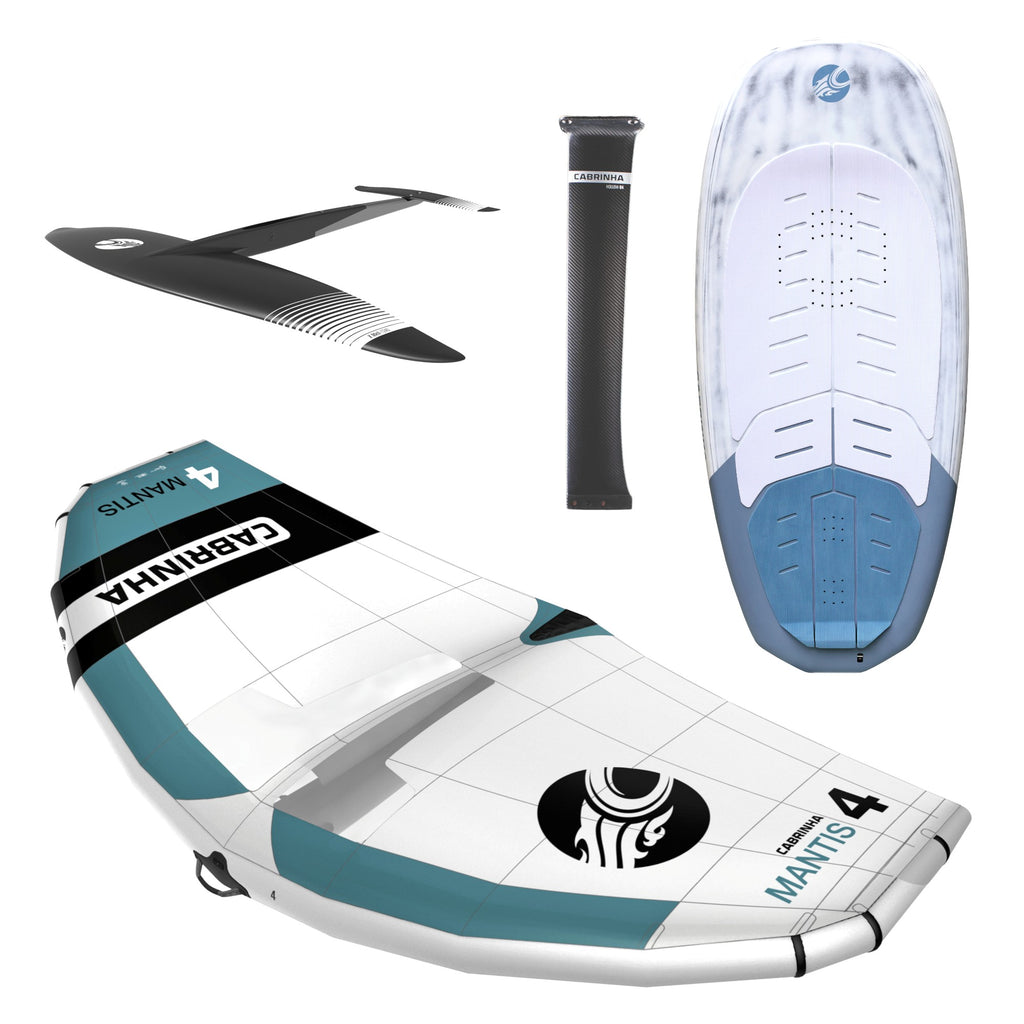

2024 Cabrinha Wingfoil Progression Package:

• 04 Code Board
• Mantis V4
• X1650/84cm Fusion Foil

Balanced. Rigid. Tuned for Progression and Precision.

This Cabrinha Wingfoil Package is a perfectly harmonized setup that brings together the most refined components in the sport: the Mantis V4 Wing, the Code Board, and the Fusion MkII Foil system. Designed for riders who demand seamless power delivery, efficient lift, and intuitive handling, this kit excels across freeride, surf, and lightwind disciplines—with the range and adjustability to grow with you.

Now get ready because we are going to talk about the components of this killer quiver.

WING: 2024 Cabrinha Mantis V4

Size Options: 4m / 4.5m / 5m / 6m
The Mantis V4 is not just Cabrinha’s most refined wing - it’s a power delivery tool engineered for immediate lift and torsional control. With a convex strut architecture and a graduated trailing edge load path, the wing maintains stability through gusts and transitions.
Perfect for big air, tricks, and low-end takeoff, the rigid composite handles and high-tenacity materials ensure direct input and superior feedback when driving the foil or initiating rotations.

Highlights:

• Clean canopy tension via spanwise load path layout

• Full rigid LE handle for precise drive control

• 2-ply elbow panels improve arc rigidity and canopy support

• Fine-tuned twist profile for sheet forgiveness in larger sizes

• Nano Ripstop canopy for increased tear strength

• Visibility-enhanced window layout for situational awareness

• SPRINT 3.0 inflation and deflate valves for rapid setup



Suggested Pairing by Wind/Weight:

These recommendations are For a 75kg rider. For each 10 kg increase in weight, you may want to step up by 0.5-1m²

• 4m: 15–30 knots
• 4.5m: 13–27 knots

• 5m: 11–26 knots

• 6m: 7–20 knots


BOARD: 2024 Cabrinha Code Wing Board

Size Options: 4'8" (60L), 4'11" (72L), 5'5" (100L)

The Code board is where early takeoff meets responsive carving. The volume distribution combined with a concave deck delivers not only efficient water release but also enhanced feedback while riding. The shortened length and pulled-in tail offer balance between stability for starts and clearance for advanced turns, whether you're learning gybes or loading up for aerials.

Key Design Features:

• New volume and buoyancy flow for centered lift


• Recessed concave deck lowers rider stance for better control


• Pulled-in tail and refined rail flow allow earlier liftoff and tighter turning


• Full-deck corduroy traction pad with strategic grip cutouts


• PVC and carbon stringer reinforcement to withstand foil loads



Volume Recommendation:

• 60L (4'8"): Intermediate/expert riders <70kg


• 72L (4'11"): All-level riders 65–85kg


• 100L (5'5"): Heavier riders, or those learning in low wind



FOIL: Fusion MkII System

Includes:

• Front Wing: X1650 MKII or X2100 MKII


• Rear Stabilizer: V285


• Fuselage: Medium Alloy


• Mast: Carbon 84cm Hollow Mast (Pre-Preg, bladder-molded)



This foil package lands in the performance sweet spot for most riders. The 84cm carbon mast provides a balanced span for stability, turning response, and energy transfer when pumping—ideal for progressing across disciplines. The X-Series MkII front wings combine early lift with impressive top-end speed, offering excellent range for everything from flatwater cruising to aggressive rail-to-rail surf transitions.

Foil Options Breakdown:

• X1650 MKII (1010mm WS, 1650cm²): Early lift, agile response—suitable for intermediate and advancing riders 70–85kg


• X2100 MKII (1150mm WS, 2100cm²): Maximum lift and low-end efficiency—ideal for heavier riders or lighter wind

Tech Highlights:

• Refined tip profiles for tip-breach recovery without ventilation


• Medium Aspect Ratio (6.0–6.2) for glide efficiency with stability


• Pre-Preg carbon with PMI core for unmatched torsional stiffness


• Barrel nut system for increased mast-to-wing load transfer


• Modular design allows interchangeability with H-Series wings


• Tapered fit for secure, flex-free connections



Recommended Use Cases:

• X1650 MKII: Best all-rounder for freeride, light surf, and powered cruising


• X2100 MKII: For heavier riders or lightwind freeride, teaching, or SUP foil transitions

Why This Package May Be An Ideal Option for You:

The interplay between components is what defines this kit:

• The Mantis V4’s rigid frame and efficient twist profile generate instant, controllable lift, perfectly matched to the early planing characteristics of the Code board’s hull shape.


• The 84cm mast bridges the gap between quick learning and advanced carving, transferring power efficiently without excess span or sluggishness.


• Both the X1650 and X2100 foil wings take full advantage of the board’s low deck profile and the wing’s drive, letting you pump or coast efficiently while carving cleanly through transitions.


• Everything is matched in torsional stiffness, profile balance, and sizing flow—this is not just a set of great parts. It’s a system that scales with your ability.

Ideal For:

• Beginner to advanced riders looking for a one-kit quiver
• Carving, cruising, or throwing freestyle in powered conditions
• Riders who value a responsive, modular, and travel-ready platform
